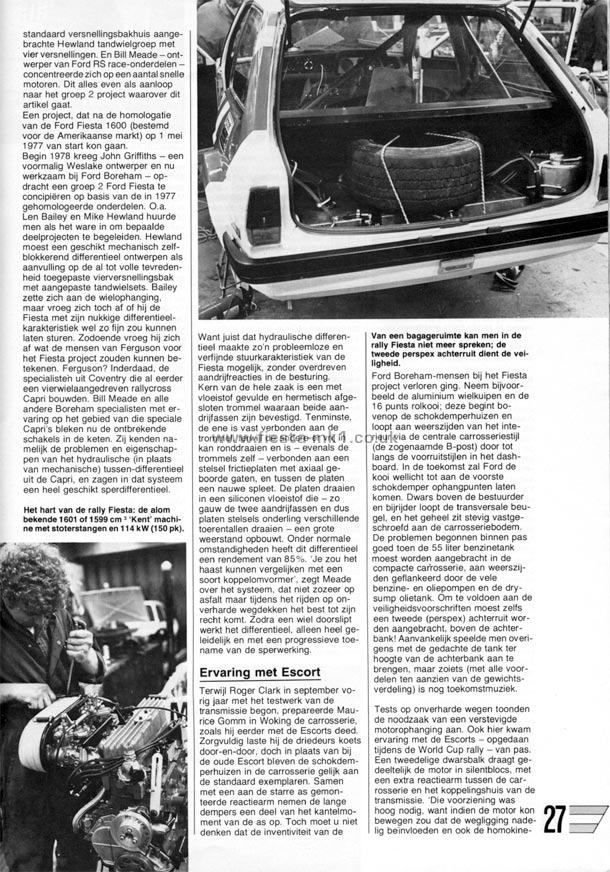

Auto Revue - Technical: Fiesta Group 2 - Page 2

English Translation and Original Text Below


.....home made standard gearbox Hewland four-speed gear group. Bill Meade and RS-designer of Ford racing parts, focused on a number of fast engines. All this just as a precursor to the Group 2 project on which this article.

A project, after the approval of the Ford Fiesta in 1600 (for the U.S. market) on May 1, 1977 could begin. Beginning in 1978 was John Griffiths - Weslake a former designer and now works at Ford Boreham - Ford Fiesta commissioned a group of 2 to conceive based on the 1977 homologated parts. Inter alia Len Bailey and Mike Hewland hired as it were, in order to accompany certain subprojects. Hewland had a suitable mechanical self-locking differential designs to complement the already applied to the satisfaction four gearbox with custom gear sets. Bailey sat down with the suspension, but still questioned whether he and his balky Fiesta differential characteristic is as fine as could be sent. So he wondered what the people of Ferguson for the Fiesta project might mean. Ferguson? Indeed, the specialists from Coventry previously a four wheel drive rally cross Capri built. Bill Meade Boreham and other specialists with experience in special Capri's proved now that the missing links in the chain. Because they knew the problems and characteristics of the hydraulic (instead of mechanical) from the differential between Capri and saw that a perfect system slip differential.

Because hydraulic differential was true that some smooth and refined steering characteristics of the Fiesta as possible without excessive driving reactions in the controls. The core of the whole matter is a fluid-filled and hermetically sealed drum which two shafts are attached. At least, one is permanently linked to the drum, while the other is free to rotate and is - as the drums themselves - a system connected to friction plate with axial holes drilled, and a narrow slit between the plates. The panels rotate in a silicone fluid - as soon as the two shafts and thus record systems differing speeds run - build a strong resistance. Under normal circumstances, this differential a return of 85%. "You could almost compare it with a torque converter type," says Meade on the system, but not on asphalt while riding on paved roads, the best justice to. Once a wheel is slipping through the differential, only very gradually and with a progressive increase in sparrowhawk king.

Experience with Escort

While Roger Clark in September last year to test the transmission of work began, prepareerde Mau-rice Gomm Woking in the body, as he did earlier with the Escorts. Carefully he charged the three-door by coach-and-through, but instead of the old Escort schokdem-perhuizen remained in the body similar to the standard ones. Together with a reaction to the rigid shaft mounted dampers take the long part of the side elmo-ment of the axis. However, you should not think that the inventiveness of the Ford Fiesta in the Boreham-people project was lost. Take the aluminum wheel tubs and the 16-point rollcage, which begins on top of the shock absorber housing and runs on both sides of the interior through the central body style (the B-post) until past the windshield pillars in the dashboard. In the future, perhaps Ford's cage to the front shock absorber suspension points to come. Cross over the driver and passenger is the cross bracket, and the whole is securely bolted to the underbody. The problems began within only good when the 55 liter fuel tank had to be made in the compact body, flanked on either side by many petrol and oil pumps and dry sump oil tank. To meet the safety requirements had even half (Perspex) rear are fitted above the rear! Initially we also played with the idea of the tank near the rear to make, but something (with all benefits in respect of weight) is still in the future.

Tests on unpaved roads showed the need for a strengthened engine mount to. Again, experience with Escorts - gained during the World Cup rally - useful. A two-piece crossbar bear part in the Silent engine, with an additional reaction between the body and the clutch housing of the transmission. "That facility was much needed, because if the engine could move that would adversely affect the handling and the kinetic.....

Captions -

Top-Right - The heart of the rally Fiesta: the famous 1601 or 1599 cm ³ 'Kent' machine with pushrods and 114 kW (150 hp).
Bottom-Left - From a boot in the rally Fiesta can not speak, the second is safety Perspex rear window.



Original Text


.....standaard versnellingsbakhuis aangebrachte Hewland tandwielgroep met vier versnellingen. En Bill Meade-ontwerper van Ford RS race-onderdelen -concentreerde zich op een aantal snelle motoren. Dit alles even als aanloop naar het groep 2 project waarover dit artikel gaat.

Een project, dat na de homologatie van de Ford Fiesta 1600 (bestemd voor de Amerikaanse markt) op 1 mei 1977 van start kon gaan. Begin 1978 kreeg John Griffiths - een voormalig Weslake ontwerper en nu werkzaam bij Ford Boreham - opdracht een groep 2 Ford Fiesta te concipiėren op basis van de in 1977 gehomologeerde onderdelen. O.a. Len Bailey en Mike Hewland huurde men als het ware in om bepaalde deelprojecten te begeleiden. Hewland moest een geschikt mechanisch zelf-blokkerend differentieel ontwerpen als aanvulling op de al tot volle tevredenheid toegepaste vierversnellingsbak met aangepaste tandwielsets. Bailey zette zich aan de wielophanging, maar vroeg zich toch af of hij de Fiesta met zijn nukkige differentieel-karakteristiek wel zo fijn zou kunnen laten sturen. Zodoende vroeg hij zich af wat de mensen van Ferguson voor het Fiesta project zouden kunnen betekenen. Ferguson? Inderdaad, de specialisten uit Coventry die al eerder een vierwielaangedreven rallycross Capri bouwden. Bill Meade en alle andere Boreham specialisten met ervaring op het gebied van die speciale Capri's bleken nu de ontbrekende schakels in de keten. Zij kenden namelijk de problemen en eigenschappen van het hydraulische (in plaats van mechanische) tussen-differentieel uit de Capri, en zagen in dat systeem een heel geschikt sperdifferentieel.

Want juist dat hydraulische differentieel maakte zo'n probleemloze en verfijnde stuurkarakteristiek van de Fiesta mogelijk, zonder overdreven aandrijfreacties in de besturing. Kern van de hele zaak is een met vloeistof gevulde en hermetisch afgesloten trommel waaraan beide aandrijfassen zijn bevestigd. Tenminste, de ene is vast verbonden aan de trommel, terwijl de andere er vrij in kan ronddraaien en is - evenals de trommels zelf - verbonden aan een stelsel frictieplaten met axiaal geboorde gaten, en tussen de platen een nauwe spleet. De platen draaien in een siliconen vloeistof die - zo gauw de twee aandrijfassen en dus platen stelsels onderling verschillende toerentallen draaien - een grote weerstand opbouwt. Onder normale omstandigheden heeft dit differentieel een rendement van 85%. 'Je zou het haast kunnen vergelijken met een soort koppelomvormer', zegt Meade over het systeem, dat niet zozeer op asfalt maar tijdens het rijden op on-verharde wegdekken het best tot zijn recht komt. Zodra een wiel doorslipt werkt het differentieel, alleen heel geleidelijk en met een progressieve toename van de sperwerking.

Ervaring met Escort

Terwijl Roger Clark in september vorig jaar met het testwerk van de transmissie begon, prepareerde Mau-rice Gomm in Woking de carrosserie, zoals hij eerder met de Escorts deed. Zorgvuldig laste hij de driedeurs koets door-en-door, doch in plaats van bij de oude Escort bleven de schokdem-perhuizen in de carrosserie gelijk aan de standaard exemplaren. Samen met een aan de starre as gemonteerde reactiearm nemen de lange dempers een deel van het kantelmo-ment van de as op. Toch moet u niet denken dat de inventiviteit van de Ford Boreham-mensen bij het Fiesta project verloren ging. Neem bijvoorbeeld de aluminium wielkuipen en de 16 punts rolkooi; deze begint bovenop de schokdemperhuizen en loopt aan weerszijden van het interieur via de centrale carrosseriestijl (de zogenaamde B-post) door tot langs de voorruitstijlen in het dashboard. In de toekomst zal Ford de kooi wellicht tot aan de voorste schokdemper ophangpunten laten komen. Dwars boven de bestuurder en bijrijder loopt de transversale beugel, en het geheel zit stevig vastgeschroefd aan de carrosseriebodem. De problemen begonnen binnen pas goed toen de 55 liter benzinetank moest worden aangebracht in de compacte carrosserie, aan weerszijden geflankeerd door de vele benzine- en oliepompen en de dry-sump olietank. Om te voldoen aan de veiligheidsvoorschriften moest zelfs een tweede (perspex) achterruit worden aangebracht, boven de achterbank! Aanvankelijk speelde men overigens met de gedachte de tank ter hoogte van de achterbank aan te brengen, maar zoiets (met alle voordelen ten aanzien van de gewichtsverdeling) is nog toekomstmuziek.

Tests op onverharde wegen toonden de noodzaak van een verstevigde motorophanging aan. Ook hier kwam ervaring met de Escorts - opgedaan tijdens de World Cup rally - van pas. Een tweedelige dwarsbalk draagt gedeeltelijk de motor in silentblocs, met een extra reactiearm tussen de carrosserie en het koppelingshuis van de transmissie. 'Die voorziening was hoog nodig, want indien de motor kon bewegen zou dat de wegligging nadelig beļnvloeden en ook de homokine-.....

Captions -

Top-Right - Het hart van de rally Fiesta: de alom bekende 1601 of 1599 cm³ 'Kent' machine met stoterstangen en 114 kW (150 pk).
Bottom-Left - Van een bagageruimte kan men in de rally Fiesta niet meer spreken; de tweede perspex achterruit dient de veiligheid.
